Key Takeaways
- Modern quarry crushing is fueled by demand for higher productivity, greater efficiency, and enhanced sustainability. Focus on machinery and methods that minimize energy consumption and ecological footprint.
- Choose primary crushers by aligning jaw, gyratory, cone, or impact types to feed size, material hardness, and project throughput. Consider total cost of ownership including maintenance.
- Drive performance with disciplined feed control, routine closed-side setting and cavity profiling checks and moisture management to minimize wear, prevent clogging and stabilize output size.
- Add smart automation with IoT telemetry and automated adjustments to provide real-time monitoring, predictive maintenance, and consistent product quality throughout the crushing circuit.
- Monitor track wear part lifecycles and leverage durable materials to reduce unplanned downtime. Maintain a database of wear rates, replacement intervals, and expenses to optimize procurement and maintenance scheduling.
- Design eco-efficient circuits that measure energy consumption, dust and noise emissions, and waste recovery. Adopt dust suppression, covered storage, and energy-efficient machines as you strive toward sustainability goals.
Modern quarry crushing is breaking rock down into usable sizes with advanced crushers and staged screening. It benefits from state-of-the-art modern quarry crushing with tracked or fixed plants, automated feed control and dust suppression to increase output and reduce energy consumption.
Typical configurations combine jaw, cone and impact crushers with conveyors and sensors for remote monitoring. Advantages are increased product consistency, reduced cost of operation and safer locations.
The meat of the article describes equipment options, design suggestions and productivity statistics.
Modern Quarry Crushing Drivers
Modern quarry crushing drivers react to the rising need for crushed stone in road base, pavement sub-base, concrete and asphalt aggregate, and drainage. This need drives operators past fundamental capacity expansions and toward intelligent systems that align output with end-use specifications, reduce expenses, and adhere to environmental regulations.
Equipment selection, site layout, and process flow now connect directly to marketplace demands and to the physical characteristics of feed material, including hardness, compressive strength, and abrasiveness.
1) Key industry trends driving adoption of advanced crushing technology
-
Market demand growth: Infrastructure and construction projects keep driving steady demand for crushed stone, requiring higher throughput and consistent gradation to meet mix designs.
-

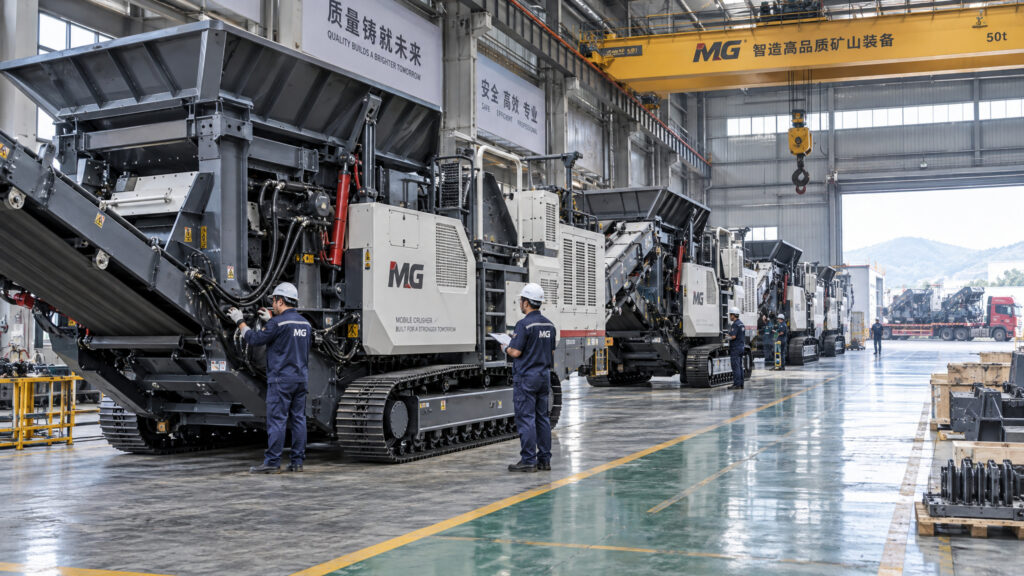

On-site, mobile processing: Compact mobile crushers let quarries process material where it is found, cut hauling distances, and reduce tipping fees and hauling costs. Mobile units enable short-term contracts and staged worksites.
-
Equipment modularity and fleet flexibility: Operators choose jaw crushers for primary reduction, cone crushers for secondary sizing, and vibrating screens to shape product. Modular systems allow sites to change layout rapidly to suit varying specs.
-
Material-driven selection: Firms pick crushers based on rock hardness, compressive strength, and abrasiveness to limit wear and downtime and to secure target particle shape.
-
Reliability and total cost: Buyers weigh uptime, spare-part lead times, and maintenance spend as much as capital cost. Predictive maintenance tools impact purchasing decisions.
-
Safety and operator ergonomics: Modern cabs, remote controls, and automated shutdowns reduce risk and make staffing easier in diverse labor markets.
-
Water and dust control tech: Advanced water management systems and dust suppression reduce environmental impact and help meet permitting limits.
-
Digital integration: Telemetry, basic plant automation and fleet tracking help balance load, plan maintenance and document compliance.
2) Optimizing material processing for higher output and efficiency
Optimizing means matching feed preparation, crusher selection and screening to product demand. Use a staged approach: primary jaw for large reductions, secondary cone for size and shape, and multi-deck screens for tight gradation.
Control fines and shape by adjusting closed-side settings and feed rates. Where room permits, mobile crushers minimize truck cycles. Monitor equipment reliability and mean time between failures to plan spare stocks.
Small investments in wear liners and automated lubrication often boost output per shift.
3) Sustainability and environmental considerations
Modern Quarry Crushing Drivers Water management systems recycle process water, minimize runoff, and suppress dust. Selecting low-wear equipment and preventive maintenance scheduling limits waste and parts turnover.
Meeting permit limits and community expectations now steers equipment layout and daily operations.
Core Equipment Selection
Selecting core crushing equipment begins with clear requirements: feed size and hardness, desired product gradation, plant throughput, site constraints, and environmental controls. Pairing crusher style to material behavior and project scale defines your maintenance burden, spare parts inventory, and long-term cost of ownership.
Jaw Units
Jaw crushers are used as a primary step for hard, abrasive rock with large size. They are favored because their plain compression action deals with big lumps and high compressive strength without rapid wear relative to impact techniques when dealing with hard rock.
Some of the main features of quality jaw units are powerful feed openings, heavy-duty fixed and moving jaws, high throughput capacity, and service-friendly access for changing jaw plates. Core equipment selection models should be matched to feed compressive strength and abrasiveness.
Check manufacturer’s ratings for maximum compressive strength and abrasion index. Larger gape and deeper chamber are needed for massive, layered strata. State-of-the-art jaw technology, including hydraulic toggle release, optimized chamber profiles, real-time load sensing, and enhanced metallurgy, minimizes stress peaks, distributes wear evenly, and increases time between inspections.
Select receiving opening and dipper size to accommodate maximum strata thickness and anticipated oversized pieces to prevent blockages and minimize feeder wear.
Gyratory Plants
Gyratory crushers are most suitable for continuous, high-capacity quarry operations where throughput is a primary consideration. Their conical, rotating mantle and large feed throat allow them to take very large feed sizes that would choke other primary crushers.
Mechanical design benefits encompass central drive, balanced loads, and a sturdy bearing and spider assembly that reduce downtime and slow wear in comparison to smaller machines. For throughput above approximately 160 US tons per hour, a mega-gyratory followed by downstream cone crushers and supporting infrastructure is a standard configuration.
This minimizes bottlenecks and keeps flow steady across shifts. Consider gyratory plants by verifying bearing life, ease of liner replacement, automation available for feed control, and whether spare part supply chains are sufficiently local to keep mean time to repair low.
Impact Systems
Impact crushers create good shaped, smaller pieces from softer stone and recycled materials and are well suited to secondary and tertiary stages where shaping of particles matter. They work great on softer feed.
Quarry rock wears parts down quicker than recycled concrete or asphalt.
- About: Core Equipment Selection – Match rotor speed and blow bar material to feed hardness and moisture.
- Check maximum feed size, reduction ratio, and required product gradation.
- Detail liner material, quick-change systems, and defined vibration boundaries.
- Track wear parts and vibrations in real time to prevent unexpected breakdowns and increase safety.
Track wear parts and vibration carefully. Cone crushers provide exceptional wear resistance and extended maintenance cycles, so they’re superior when it comes to long-term continuous runs and lower lifecycle cost for medium particle processing.
Optimize Modern Quarry Crushing
Effective quarry crushing needs a plan, one that connects equipment, process control and maintenance to specific production targets. Crushing efficiency powers output and cost; misplaced configurations induce bottlenecks and maintenance. Before fine tuning operational controls, match crusher type and settings to feed size, material hardness, desired product and reduction stage.
1. Feed Control
Employ hoppers sized to buffer volumes and variable-speed feeders to maintain a constant flow of material into primary and secondary crushers. Steady feed doesn’t create surges that overload jaw or cone crushers and cause uneven mantle and concave wear.
Adapt feed rates to each crusher’s capacity and product size, such as lowering feed rate when going from primary to a cone for secondary work to avoid packing. Uniform feed increases throughput and minimizes fines and recirculation, which can enhance product quality.
2. Closed-Side Settings
CSS, or closed-side setting, is a crusher’s minimum gap and controls final product size and throughput. Monitor CSS regularly and tailor it to the hardness and abrasiveness of the rock and the reduction ratio needed.
Use P80 calculations to verify if a jaw crusher is producing about a 6-to-1 reduction. Poor CSS can make crushers operate inefficiently, which increases wear or generates out of spec material. Maintain a log or table of CSS values, material fed, and resulting product gradation to trend and inform settings changes.
3. Cavity Profiling
For maximum benefit, keep the cavity’s shape as originally designed by monitoring wear patterns and replacing liners, mantles and toggle plates before profile degradation changes crushing action. Proper cavity profile ensures rock is impounded at optimal points and compressed to improve energy efficiency and throughput.
Cone crushers utilize the mantle/concave interface to impinge feed in secondary and tertiary stages. Plan checks at predetermined tonnage intervals and record liner life and cavity geometry to avoid unexpected production drops and bigger repairs.
4. Moisture Management
Monitor moisture at intake and in stockpiles. Wet materials gum up screens, decrease belt traction, and shrink throughput while accelerating wear.
When possible, use screening, covered storage, and even simple drying zones to maintain consistent feed. Create a short checklist for operators: measure moisture, segregate wet batches, adjust screen apertures, and verify conveyor cleat condition.
5. Circuit Balancing
Balance every conveyor speed, crusher setting, and screen capacity with a flowchart that compares theoretical and measured tonnages. Circuits out of balance create bottlenecks, increased recirculation, and wasted energy.
For optimized modern quarry crushing, align crusher selection and configuration to feed and product requirements. Primary crushers process ROM material first before secondary or tertiary stages refine size and shape. Employ the flowchart to pilot changes and minimize surprises in day-to-day operation.
Smart Automation Integration
Smart automation connects sensors, control logic, and analytics to the crusher and its feed systems to increase efficiency and reduce risk.
About: Smart Automation Integration Real-time visibility into machine health, material flow, and process state before H3 topics below. Integration starts with a site audit and design. Audits typically take a few days to a week depending on plant size and condition, while the design can take several months and implementation time varies with complexity.
IoT Telemetry
IoT sensors capture vibration, temperature, pressure, level, and throughput data at the source. Easy sensor networks typically employ a standardized four-wire cable scheme that carries power and signals, making field wiring and diagnostics simpler than previous wire-sheath to control box arrangements that looped dozens of separate conductors from the PLC to each individual part.
Remote monitoring allows operators to identify patterns and fault signatures early that foreshadow failure, so crews can intervene before harm is done. Dashboards aggregate KPIs, including feed rate, crushing force, product gradation, liner wear percentage, and motor load, and can show multiple machines across the site for easy comparison.
Configure dashboards with thresholds and time-series views for shift handovers and daily standups. Telemetry data should inform maintenance scheduling. Use the data to shift from calendar-based service to condition-based or predictive maintenance, maximizing wear parts life, reducing downtime, and preventing costly damage. Retain raw and processed data for after-actions and refinement.
Automated Adjustments
Smart automation integration allows automated systems to modify crusher settings in real time as material characteristics vary. For instance, altering closed side setting, choke feeding, or feeder speed sustains target product size. This maintains output uniform and keeps throughput close to design capacity even as liners erode.
Automation minimizes intervention and human error by automatically adjusting process routines and alerting when conditions stray from safe bands. Set up notifications for quick wear part swap, irregular shake, elevated bearing heat or jammed jaws. These alerts safeguard machines by triggering interventions to stop additional damage.
Write down automated adjustment procedures in explicit step lists for the operator and maintenance personnel. Add trigger conditions, expected outcomes, rollback steps, and escalation paths. Keep protocol documents next to dashboard links and past examples so that new staff can get up to speed quickly and teams can debug without guesswork.
For the evaluation of automation solutions, we need to check for compatibility with existing crushers, drives, and PLC. Evaluate wiring topology, fieldbus support, I/O counts, and control logic mapping as part of your audit.
Today’s crushing plants can have nearly every process automated: crushing, screening, washing, loading. Success rests on careful design and phased implementation that honors the plant’s existing reality.
Wear Part Optimization
Wear part selection and management are key to keeping today’s quarry crushers running smoothly, reducing expenses, and increasing productivity. Selecting rugged wear parts implies looking past list prices to considerations like material hardness, impact resistance, and geometry that suit the crusher type and feed material.
In cone crushers, for example, liner and wear part optimization can directly increase throughput by maintaining the ideal shape of the crushing chamber for longer periods. Wear-resistant liners help maintain uniform feed distribution, minimize fines production, and assist in maintaining the engineered crushing cavity contours that produce higher quality product shape.
Track wear rates carefully and schedule replacement on numbers, not hunch. Monitor your wear parts by tracking key metrics such as hours in service, tons processed and change in liner profile. Regular liner thickness and chamber shape checks allow you to plan replacements before performance drops off.
Swaps in time stop unplanned downtime and spare mantles, concaves or shafts from collateral damage. Keep a log of every wear part: part number, start and end dates, tons crushed, replacement cost, and any observed failure mode. This log helps make wear trends visible and informs decisions on whether those more expensive, longer-life parts pay off over time.
Material and design innovations are transforming what’s possible with wear parts. Cutting-edge wear part optimization includes new alloys and composite wear-resistant materials that diminish abrasion and impact wear, reducing your parts replacement rate.
Modern liner designs concentrate on optimized chamber geometry that keeps the crushing cavity working at its peak, enhancing particle shape and minimizing recirculating load. Options such as stepped liners for certain gradings or variable profile liners that more closely match varying feed sizes are possible to increase component life and maintain steady crusher performance on the shifts.
Feed distribution and automation are tangible levers to save wear parts and increase throughput. Feed distribution, when properly designed to deliver material evenly into the crusher, reduces uneven wear and concentrates crushing in the designed zones.
Modern control systems can track power draw, load, and throughput and respond on the fly to keep crushing efficient and minimize wear. With hydraulic adjustment systems, operators can adjust closed side settings or clear uncrushables in no time, avoiding damage and keeping production volumes on pace.
Beware of energy use when optimizing wear parts. Wear part optimization leads to longer-lasting parts and well-tuned crusher chambers that minimize the energy required to process each ton crushed, decreasing operational cost and environmental impact.
Combine material selection, chamber design, feed control, and automation to optimize wear part life and total cost of ownership.
Eco-Efficient Circuit Design
Eco-efficient circuit design seeks to reduce energy and waste in quarry crushing by fine-tuning equipment, settings, and process flow to the material and product requirements. Begin by scaling the circuit to feed and product. Feed size, product size, and target throughput determine crusher selection and screen apertures.
In iron ore or coal, where product size matters, select jaw settings and screen sizes that produce the minimum fines while hitting specifications. For example, primary crushers are typically designed to operate at approximately 75% of available time. Design for steady feed and anticipate interruptions from low feed or mechanical delays to preclude inefficient starts and stops that dissipate energy.
About: Eco-efficient circuit design, crushing and screening to reduce greenhouse gases and energy consumption. By using crushing and screening to remove oversized material up front, the grinding stage is shortened and draws less power downstream. Combine rod mill and ball mill grinding where appropriate.
Rod mills break coarse particles with lower energy per ton, and ball mills finish to fine powder, together reducing total energy use versus overloading one mill type. Use SPI test results to set mill duty. The SPI gives the energy needed to grind ore to a size, so apply it to pick mill sizes and liners that hit the target with the least power.
Embed mobile crushers where project requirements lean in their direction. Mobile units reduce upfront capital investment, provide greater flexibility of location, and tend to have higher salvage value at the end of the project. They allow you to shift crushing nearer the source, reducing haul distances and diesel consumption.
Check mobility trade-offs: mobile plants sometimes lack the capacity or screening efficiency of fixed plants. Manage dust, noise and waste in circuit design and systems selections. Fit dust suppression at transfer points, screens and conveyors using water sprays, fogging or local extraction.
Incorporate design noise control into enclosures, berms and isolated foundations to reduce community and worker impacts. Plan efficient waste handling. Stockpile management, return-water systems, and fines recovery circuits reduce material loss and water demand.
Switch to energy-efficient hardware and operating practices. Choose drives, motors and VFDs sized for constant-load operation. Based on load versus power, ecosystem-efficient circuit design trims feed speed and choke feeding to maintain crushers in their efficient range.
Track metrics to guide decisions:
- energy use per tonne processed (kWh/t)
- specific grinding energy (kWh/t from SPI-based targets)
- fines generation rate (% mass < target size)
- water use per tonne (L/t)
- dust emissions (mg/m3 at key points)
- uptime vs design availability (%)
- diesel use for hauling (L/t)
Conclusion
Less waste, higher output, lower cost, modern quarry crushing! Smart sensors monitor feed size and wear, so crushers operate at optimal settings and require less downtime. Selecting jaw, cone, or impact crushers according to rock type accelerates production and reduces energy consumption. Easy circuit modifications, such as installing a prescreen and recirculation loop, increase product quality and reduce fines. Hard-wearing liners and quick-change parts keep uptime high and labor low. Automation provides a steady load, stable product, and clear data for tweaks. Eco design saves water and energy and complies with the rules and community needs.
Wish a brief plan for your site. Give me rock type, target sizes, and daily tonnage. I’ll write down a well-defined, actionable next action.
Frequently Asked Questions
What drives investment in modern quarry crushing?
Today’s markets require increased production, reduced unit cost, and stringent environmental regulations. These business, regulatory, and sustainability drivers push quarries to upgrade equipment and processes for better efficiency and compliance.
Which core machines are essential for a modern crushing plant?
Jaw crushers, cone crushers, impactors, scalping screens and feeders are at the heart. Choose models by capacity, feed size and product specs to complement your quarry’s material and output.
How can quarries optimize crushing throughput?
Utilize proper feed distribution, appropriate crusher settings, staged screening, and routine maintenance. These measures minimize downtime, enhance particle shape, and maximize tons per hour.
What role does automation play in quarry crushing?
Automation stabilizes feed, controls crusher gaps and monitors performance. It increases consistency, minimizes operator error and allows remote operator tuning to optimize uptime and product quality.
How do wear parts affect cost and performance?
Wear parts define product shape and cost to operate. Selecting wear-resistant alloys, monitoring wear rates, and implementing proactive replacements reduces downtime and overall cost per tonnage.
How can circuit design improve environmental performance?
Closed-circuit designs, recycled water use and optimized dust suppression reduce water use, emissions and fines. These steps reduce environmental footprint without sacrificing product quality.
How do I choose the right crusher for my material?
Match crusher type to material hardness, abrasiveness, and feed size. Leverage lab testing, vendor data, and site trials to verify that your crusher selection will meet capacity and product needs.
